Commercial
Stratus
Refined Capability
Ideal For
Commercial Spaces
Indoor Use
Cost
$$$
Site Preparation
Standard
Max Travel Distance
14FT
Max Capacity
800LBS
Max Travel Speed
20FT/MIN
Max Platform Size
W40″ x L60″
STANDARDIZED PERFORMANCE

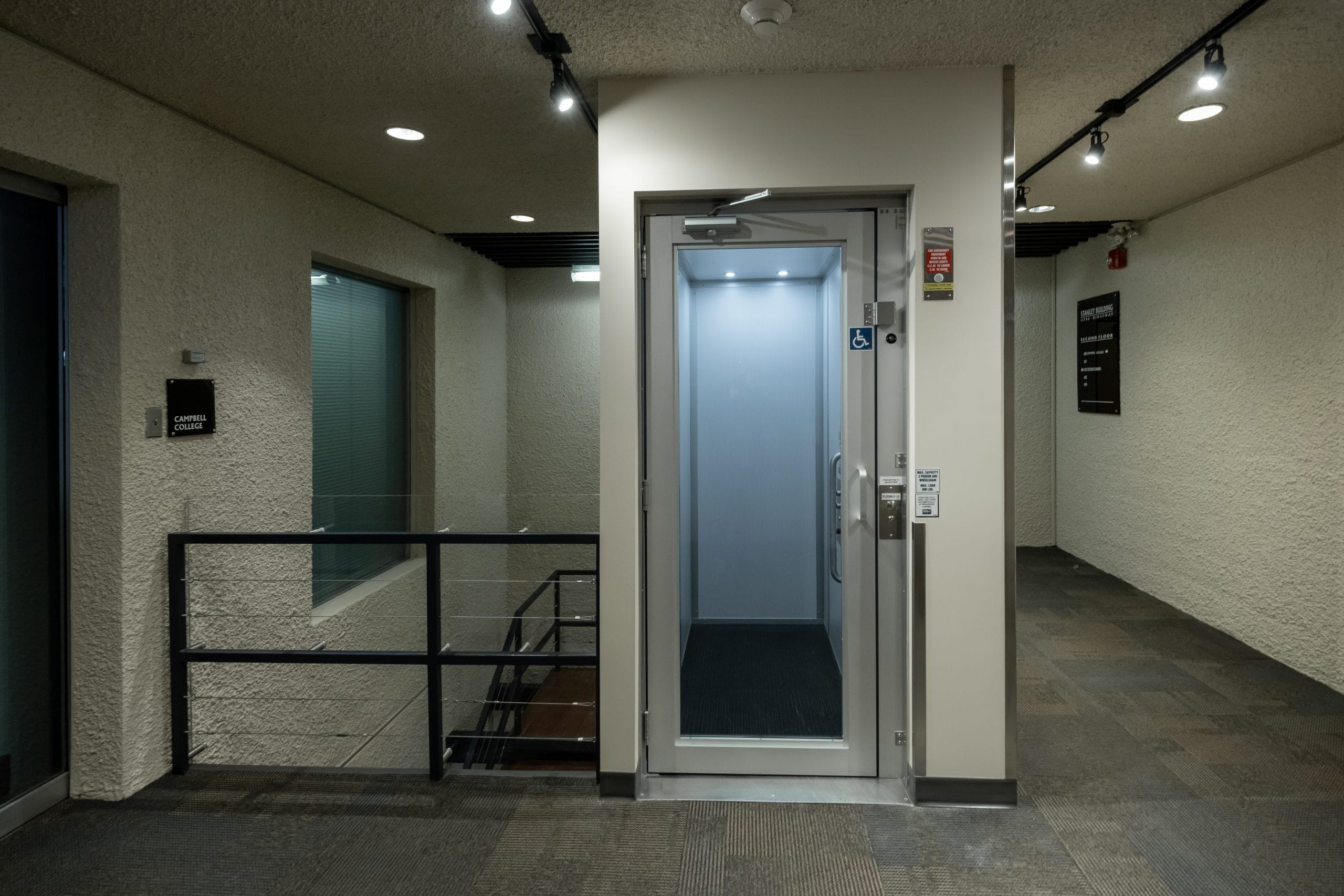

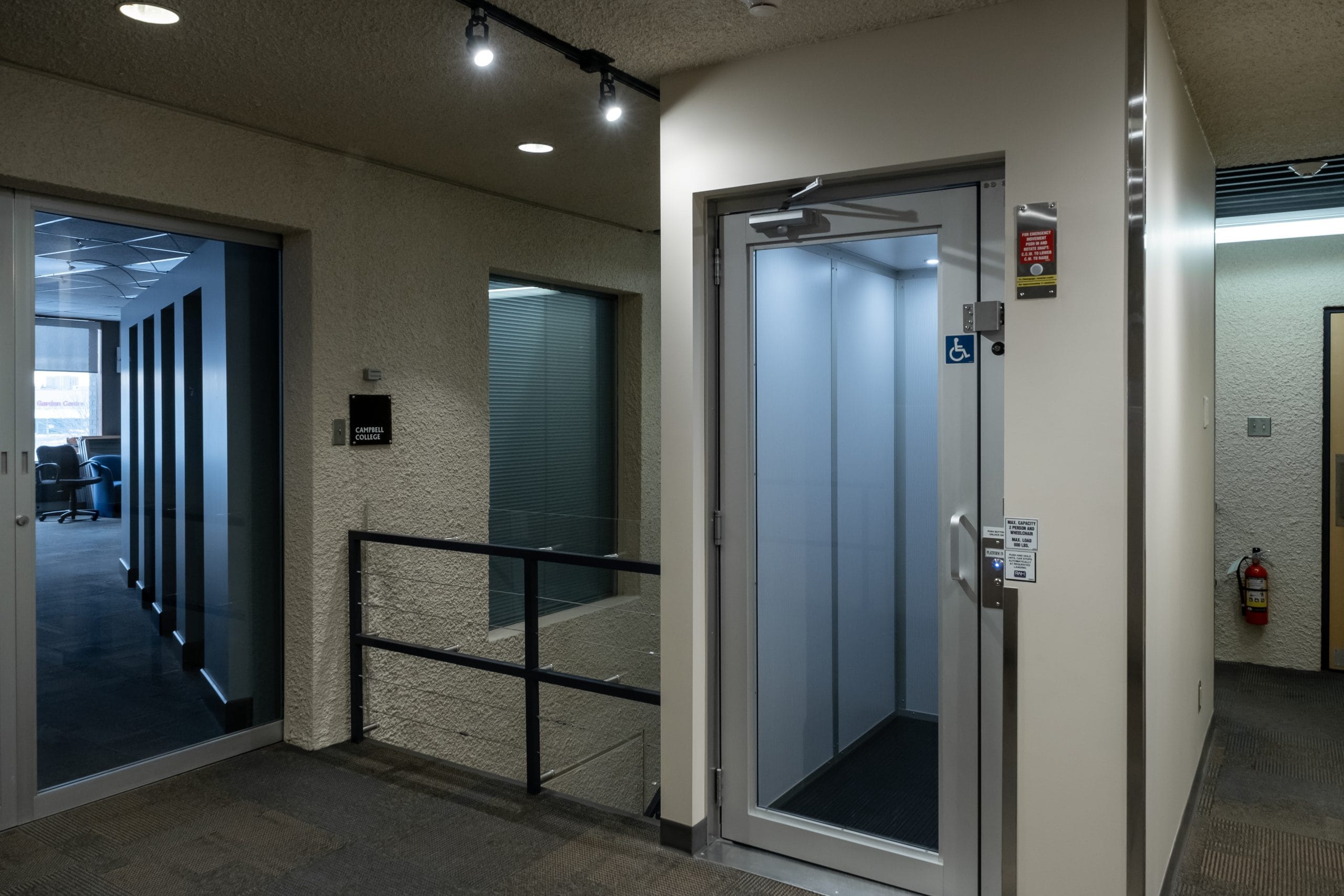

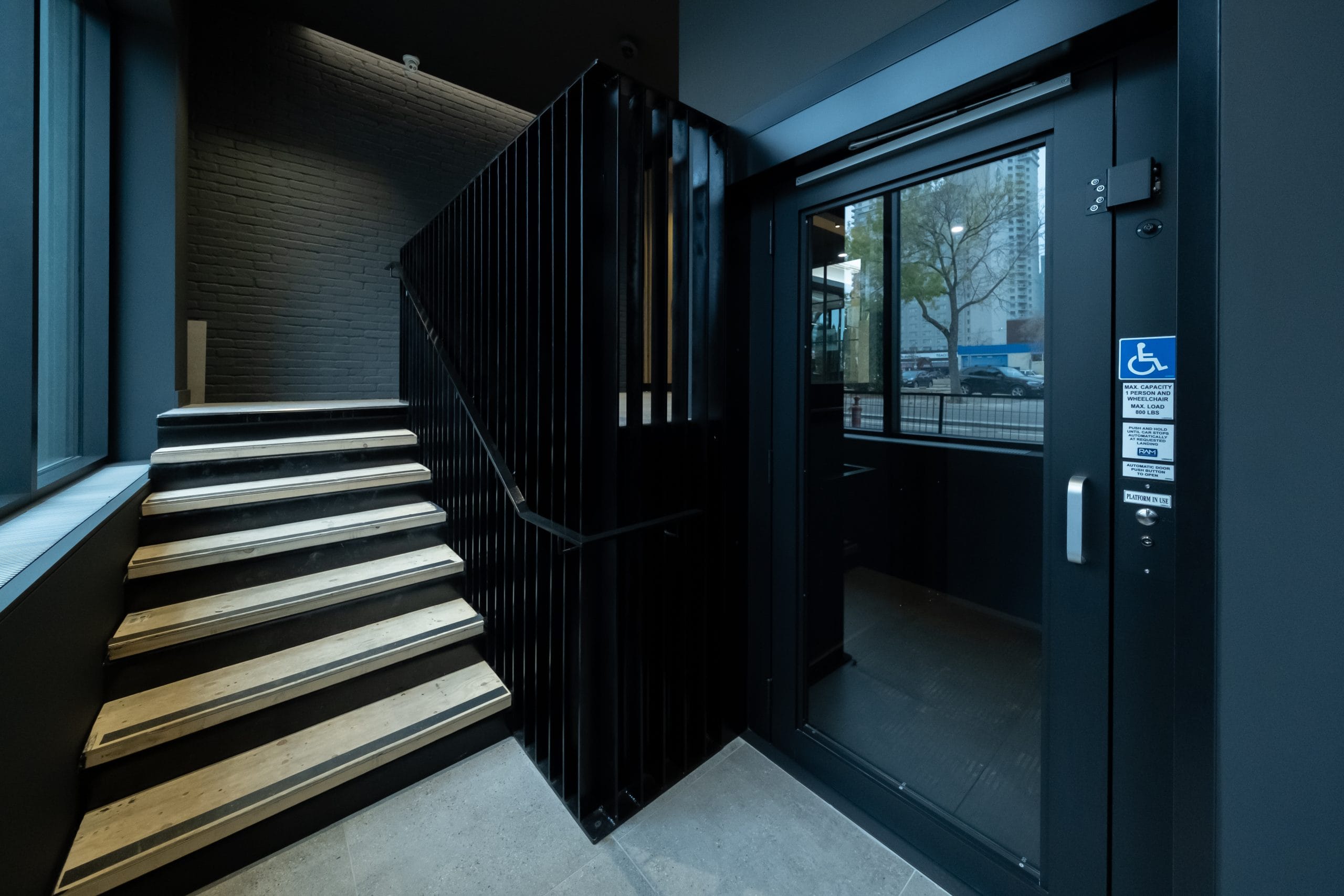

The Commercial Stratus lift is the practical turnkey mobility solution for buildings up to two storeys and four stops. A standard format product, the Commercial Stratus is available in three car sizes and travel distances, with a range of finishing options, offering flexibility and value that doesn’t compromise performance.
The Stratus’ standardized sizing eliminates complexity and cost and significantly reduces installation time, making it an ideal addition to both new builds and renovations alike. With its completely enclosed car, it affords riders the experience of an elevator at a fraction of the price.
KEY FEATURES
Tailored Finishes
Choose from three standard car sizes and travel distances, in addition to multiple interior finishes and door styles to complement your space.
Economical Performance
The Commercial Stratus lift is 40% less expensive than our Traction LULA Elevator and as much as 65% less than a commercial passenger elevator.
Soft Start/Stop
Thoughtful engineering means every ride on a RAM product begins and ends with comfort in mind.
All-Electric Drive System
RAM’s field-proven electric drive system is reliable, powerful and whisper-quiet. Plus, no hydraulic fluid = no harsh smells.
Machine-Room Less (MRL) Design
Limited or No Pit Required
= RAM Advantage, an essential feature found in all of our products.
GROUNDED SIMPLICITY,
ELEVATED DESIGN
Get started with RAM today.
Technical
Documentation
+ Support
Please check with local regulatory authorities as capacity, size and speed restrictions may apply
Code Requirements
ASME A18.1/B355
Brochure
Manuals + Maintenance
Available Sizes
Car Size:
| Car Inside Dimensions | Shaft Dimensions | ||||
|---|---|---|---|---|---|
| Width | Depth | Height | Depth | Length | |
| Small | 36″ | 48″ | 84″ | 50.5″ | 53.5″ |
| Medium | 40″ | 54″ | 84″ | 54.5″ | 59.5″ |
| Large | 40″ | 60″ | 84″ | 54.5″ | 65.5″ |
Travel Heights:
| Max Travel (T) | Min Overhead Clearance (C) | Tower Height (TH) |
|---|---|---|
| 9′ | 92″ | 13′ |
| 11′ | 92″ | 15′ |
| 14′ | 92″ | 18′ |
